In large-scale water distribution and industrial pipeline networks, valve selection directly impacts system reliability, installation efficiency, and long-term maintenance costs. The Dark Rod Soft Seal Gate Valve has emerged as a preferred solution for projects requiring compact installation, tight sealing, and minimal operational complexity. Especially in underground or space-constrained environments, this valve type offers a balance between performance and practicality that aligns well with modern B2B engineering demands.

What Is a Dark Rod Soft Seal Gate Valve?

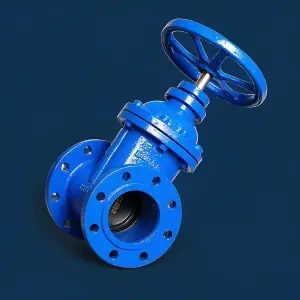

A Dark Rod Soft Seal Gate Valve, commonly referred to as a non-rising stem resilient seated gate valve, is designed with an internal stem that does not extend externally during operation. The term “dark rod” indicates that the stem remains hidden within the valve body, making it ideal for installations where vertical space is limited.

Unlike traditional metal-seated valves, this valve uses a rubber-coated gate (typically EPDM or NBR) to achieve a tight, leak-free seal. It is widely used in water supply systems, wastewater pipelines, and infrastructure networks where reliability and corrosion resistance are essential.

Key structural elements include:

● Non-Rising Stem (Dark Rod) – The stem rotates internally without vertical movement, saving installation space
● Soft Sealing Gate – Rubber-coated wedge ensures zero or near-zero leakage
● Ductile Iron Body – Provides excellent strength, durability, and resistance to mechanical stress
● Epoxy Coating – Protects against corrosion and extends service life
● Flanged or Socket Ends – Enables easy integration with pipeline systems

This design ensures that the valve performs efficiently while remaining compact and easy to install.

Why Choose a Dark Rod Soft Seal Gate Valve?

For B2B buyers and engineers, selecting the right valve involves evaluating not only performance but also installation constraints and lifecycle costs. The Dark Rod Soft Seal Gate Valve offers several distinct advantages:

● Compact Design – Ideal for underground pipelines, valve chambers, and confined spaces
● Excellent Sealing Performance – Soft seal eliminates leakage risks and enhances system safety
● Low Operating Torque – Smooth operation reduces manual effort and actuator load
● Reduced Maintenance Needs – Internal stem protection minimizes exposure to external contaminants
● Cost Efficiency – Long service life and minimal maintenance reduce total cost of ownership

These benefits make it particularly suitable for municipal infrastructure and industrial pipeline projects where space and reliability are critical.

Key Technical Characteristics

Understanding the technical features of this valve type helps ensure proper specification and procurement:

● Pressure Ratings – Typically PN10 or PN16, suitable for most water systems
● Material Options – Ductile iron body, stainless steel stem, and elastomer-coated gate
● Sealing Materials – EPDM for potable water, NBR for general industrial use
● Temperature Range – Designed for standard water and wastewater conditions
● Connection Standards – Compatible with international flange standards such as DIN, BS, or ANSI

These specifications ensure that the valve meets the operational requirements of modern pipeline systems.

Industrial and Municipal Applications

The Dark Rod Soft Seal Gate Valve is widely used across industries that require reliable shut-off and compact installation:

● Urban Water Supply Networks – Ideal for underground distribution systems with limited space
● Wastewater Treatment Facilities – Provides reliable isolation in corrosive environments
● Irrigation Systems – Ensures efficient water control in agricultural pipelines
● Industrial Water Systems – Used in cooling, processing, and utility pipelines
● Fire Protection Systems – Delivers dependable shut-off in emergency water supply lines

Its versatility and durability make it a key component in both new infrastructure projects and system upgrades.

Installation and Maintenance Best Practices

To maximize performance and service life, proper installation and maintenance are essential:

● Ensure correct pipeline alignment to avoid unnecessary stress on the valve body
● Install in clean systems to prevent debris from damaging the soft seal
● Operate the valve fully open or closed to protect sealing surfaces
● Periodically inspect the epoxy coating and sealing components
● Apply appropriate lubrication to internal components if required

Routine inspection and preventive maintenance help maintain optimal sealing performance and extend valve life.

Dark Rod vs Rising Stem Gate Valve: Key Differences

When selecting a gate valve, understanding the difference between dark rod and rising stem designs is crucial:

● Stem Movement – Dark rod valves have internal stem rotation, while rising stem valves move vertically
● Space Requirements – Dark rod valves are compact; rising stem valves require more vertical space
● Visual Indication – Rising stem valves provide visible position feedback; dark rod valves rely on indicators or operation tracking
● Application Suitability – Dark rod valves are preferred for underground or confined spaces, while rising stem valves are used where visibility is important

Choosing the appropriate type depends on installation conditions and operational requirements.

Conclusion

The Dark Rod Soft Seal Gate Valve represents a modern, efficient solution for pipeline systems that demand compact installation, reliable sealing, and low maintenance. Its non-rising stem design, durable materials, and resilient sealing technology make it an ideal choice for municipal water systems, industrial pipelines, and infrastructure projects. For B2B professionals, investing in this valve type ensures improved operational efficiency, reduced maintenance costs, and long-term system reliability. As infrastructure projects continue to evolve, the demand for compact and high-performance valve solutions like this will only increase.

FAQ

1. What does “dark rod” mean in a gate valve?
It refers to a non-rising stem design where the stem remains inside the valve body and does not move vertically during operation.

2. What are the main advantages of a soft seal gate valve?
Soft seal valves provide tight sealing, minimal leakage, and lower maintenance compared to metal-seated valves.

3. Where are dark rod soft seal gate valves commonly used?
They are widely used in underground water supply systems, wastewater treatment plants, irrigation networks, and industrial pipelines.

4. How do they compare with rising stem gate valves?
Dark rod valves save space and are suitable for confined installations, while rising stem valves offer visible operation status but require more space.
