In modern industrial systems, valves must deliver not only reliable shut-off but also long service life under challenging operating conditions. Applications such as wastewater treatment, chemical processing, and slurry handling often involve abrasive media, high pressure, and frequent cycling. The Eccentric Plug Valve is specifically engineered to meet these demands, offering tight sealing, reduced wear, and superior operational efficiency.

For B2B engineers, procurement professionals, and system designers, understanding this valve type is essential for optimizing performance and minimizing maintenance costs.

What Is an Eccentric Plug Valve?

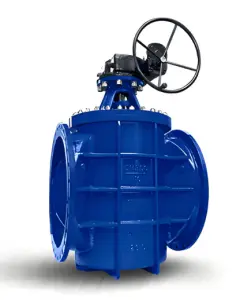

An eccentric plug valve is a quarter-turn rotary valve that uses an offset (eccentric) plug to control fluid flow. Unlike traditional concentric plug valves, the plug in this design is slightly offset from the centerline, allowing it to move away from the seat during opening and closing. This unique motion minimizes friction and reduces wear on sealing surfaces.

The valve operates by rotating the plug 90 degrees. When the valve is closed, the plug presses tightly against the seat to create a secure seal. When opened, the plug moves away from the seat, allowing smooth flow with minimal resistance.

Key structural components include:

● Eccentric Plug – Offset design reduces contact with the seat during operation
● Valve Body – Typically made from ductile iron, cast steel, or stainless steel
● Seat Material – Often composed of resilient elastomers or metal for durability
● Shaft and Bearings – Provide stable rotation and reduce operating torque
● Actuation System – Can be manual, electric, or pneumatic

This design ensures both durability and reliable sealing, even in harsh environments.

How Eccentric Design Improves Performance

The eccentric structure is the defining feature of this valve and provides several performance advantages over traditional valve designs.

● Reduced Friction – The plug disengages from the seat during rotation, minimizing wear
● Extended Service Life – Less contact between sealing surfaces leads to longer durability
● Improved Sealing – Tight shut-off is achieved without excessive force
● Lower Operating Torque – Easier operation compared to conventional plug valves
● Resistance to Abrasion – Suitable for handling slurries and solid-laden fluids

These features make eccentric plug valves ideal for applications where reliability and longevity are critical.

Types of Eccentric Plug Valves

Eccentric plug valves are available in different configurations to suit various industrial requirements.

● Resilient Seated Eccentric Plug Valve – Uses rubber or elastomer lining for tight sealing in water systems
● Metal Seated Eccentric Plug Valve – Designed for high-temperature or abrasive applications
● Flanged Eccentric Plug Valve – Allows easy installation in pipeline systems
● Lug Type Eccentric Plug Valve – Suitable for systems requiring easy removal and maintenance
● Actuated Eccentric Plug Valve – Equipped with electric or pneumatic actuators for automation

Selecting the appropriate type depends on the medium, pressure, and operational conditions.

Applications in Industrial Systems

Eccentric plug valves are widely used in industries that require robust and reliable flow control solutions.

● Wastewater Treatment Plants – Handles sludge, grit, and solid-laden fluids
● Chemical Processing – Suitable for corrosive and reactive media
● Mining and Slurry Systems – Performs well under abrasive conditions
● Pulp and Paper Industry – Controls flow of pulp and fibrous materials
● Power Generation – Used in cooling water and auxiliary systems

Their ability to operate in harsh environments makes them indispensable in these sectors.

Key Advantages for B2B Buyers

For B2B procurement and engineering teams, eccentric plug valves provide several important benefits.

● Durability – Designed to withstand demanding operating conditions
● Low Maintenance – Reduced wear lowers maintenance frequency
● Operational Efficiency – Smooth flow and low pressure drop improve system performance
● Versatility – Suitable for a wide range of media and industries
● Cost Savings – Long service life reduces total cost of ownership

These advantages make eccentric plug valves a strategic investment for industrial systems.

Installation and Maintenance Considerations

Proper installation and maintenance are essential to ensure optimal performance.

● Install the valve in the correct orientation as specified by the manufacturer
● Ensure alignment with pipeline flanges to avoid stress
● Regularly inspect the seat and plug for wear or damage
● Operate the valve periodically to prevent sticking
● Lubricate moving components as required

A proactive maintenance strategy helps maximize valve lifespan and performance.

Eccentric Plug Valve vs Butterfly Valve

Understanding the differences between eccentric plug valves and butterfly valves can help in selecting the right solution.

● Sealing Performance – Eccentric plug valves typically provide tighter shut-off
● Durability – Better suited for abrasive and slurry applications
● Flow Characteristics – Butterfly valves offer lighter weight and lower cost
● Application Scope – Eccentric plug valves are preferred in harsh environments

Choosing between these options depends on system requirements and operating conditions.

Conclusion

The Eccentric Plug Valve is a high-performance solution designed for demanding industrial applications. Its unique offset design reduces wear, improves sealing, and enhances operational efficiency. For B2B professionals, this valve offers a reliable and cost-effective solution for handling challenging media and maintaining long-term system performance. As industries continue to demand more durable and efficient flow control solutions, eccentric plug valves remain a critical component in modern pipeline systems.

FAQ

1. What is an eccentric plug valve used for?
It is used for controlling flow in systems handling water, wastewater, slurry, and other challenging media.

2. How does an eccentric plug valve differ from a standard plug valve?
The eccentric design reduces contact with the seat, minimizing wear and improving durability.

3. What industries commonly use eccentric plug valves?
They are widely used in wastewater treatment, mining, chemical processing, and power generation.

4. What are the advantages of eccentric plug valves?
They offer tight sealing, low maintenance, long service life, and reliable performance in harsh conditions.
