A flanged Y-type strainer is a vital filtration component used across industrial piping systems to remove solid impurities and protect downstream equipment. As factories aim for higher reliability and reduced maintenance downtime, the demand for durable and efficient strainers continues to grow. For B2B buyers—including engineering companies, OEM manufacturers, and industrial project contractors—understanding the performance and application of flanged Y-type strainers is essential for ensuring stable system operation.

Core Design and Working Principles of Flanged Y-Type Strainers

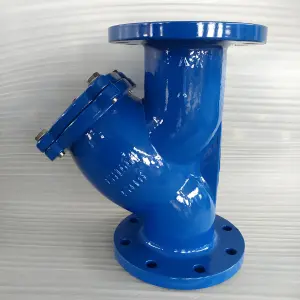

A flanged Y-type strainer contains a perforated or mesh stainless steel screen positioned inside a Y-shaped body to capture contaminants from the flow stream. The flanged connection provides strong sealing performance, making the strainer suitable for high-pressure industrial pipelines. Its streamlined internal structure minimizes pressure loss and supports continuous operation in demanding environments. Various mesh sizes and material options allow the strainer to be adapted for different media and filtration requirements.

Key Features and Industrial Advantages

• Efficient removal of debris to protect pumps, valves, and instrumentation

• Low-pressure-drop design compatible with high-flow systems

These features make flanged Y-type strainers a cost-effective solution for ensuring equipment longevity and system cleanliness.

Material Options for Industrial Applications

Flanged Y-type strainers can be produced from carbon steel, stainless steel (304/316), ductile iron, cast iron, or alloy steel. Carbon steel models are widely used for general fluid systems, while stainless steel is ideal for corrosive environments such as chemical processing and seawater filtration. For steam, high-temperature liquids, or high-pressure gases, alloy steel or forged steel options offer enhanced strength and thermal resistance.

Applications Across Major Heavy-Industry Sectors

These strainers play a crucial role in oil & gas, petrochemical production, power generation, water treatment, HVAC systems, and industrial manufacturing. They prevent particulate contamination that could block pipelines or damage machinery. In sanitary industries such as food or pharmaceuticals, stainless steel Y-type strainers are used to maintain product purity and comply with hygiene standards.

Choosing the Right Flanged Y-Type Strainer for B2B Projects

Selecting the correct strainer requires evaluating flow conditions, media properties, and pipeline standards. Buyers should consider mesh size, which determines filtration accuracy, as well as pressure ratings such as PN16, PN40, Class 150, or Class 300. Compatibility with flange standards (ANSI, DIN, JIS, GB) is also important for global engineering projects. For applications with high impurity levels, larger screen areas or reinforced filter screens help prevent frequent cleaning.

Maintenance and Operational Performance

Flanged Y-type strainers are designed for simple maintenance. The filter screen can be removed, cleaned, or replaced without dismantling the whole pipeline. Optional blow-off valves allow operators to discharge accumulated debris quickly while the system remains active. Regular cleaning maintains low pressure drop, improves flow efficiency, and reduces equipment wear. With proper maintenance, high-quality strainers deliver long service life and stable performance.

Technical Benefits of Flanged Connections

Flanged ends ensure reliable installation, strong sealing, and easy disassembly in medium- and high-pressure systems. This connection method allows precise alignment and simplifies maintenance, replacements, or inspection. For international markets, flanged strainers can be manufactured according to ASME, EN, ISO, JIS, or BS standards to support a wide range of global engineering requirements.

Performance Improvements in Modern Y-Type Strainers

Recent enhancements include optimized flow-channel design, anti-corrosion coatings, stronger filter screens, and improved pressure-resistance. Advanced systems may incorporate differential pressure sensors to monitor clogging and support predictive maintenance. Custom options such as jacketed strainers, duplex configurations, or large-area screens enable users to meet specific project needs.

Conclusion

Flanged Y-type strainers are an essential part of industrial pipeline systems, providing reliable filtration and protection for downstream equipment. Their robust materials, versatile applications, and compatibility with global piping standards make them suitable for numerous industrial environments. For B2B buyers, understanding the design, material options, and maintenance requirements of these strainers helps ensure system efficiency, reduced downtime, and long-term operational stability.

FAQ

1. Which industries commonly use flanged Y-type strainers?
Oil & gas, petrochemical plants, water treatment, HVAC systems, power plants, and general industrial manufacturing.

2. What materials are available for flanged Y-type strainers?
Carbon steel, stainless steel, cast iron, ductile iron, and alloy steel depending on the application.

3. How do I choose the correct mesh size?
Mesh size depends on the particle size in the fluid and the required filtration accuracy.

4. Are flanged Y-type strainers suitable for high-pressure pipelines?
Yes. When manufactured to ASME/DIN standards, they can safely operate in medium- and high-pressure environments.
