In modern industrial piping systems, reliability, safety, and ease of maintenance are the top priorities for engineers and procurement managers. Flanged plug valves offer a robust solution for pipeline isolation and flow control, combining durability with precise shut-off performance. From oil and gas facilities to water treatment plants, selecting the right flanged plug valve can significantly improve operational efficiency, reduce maintenance costs, and extend equipment life, creating substantial economic benefits and safety assurance for large-scale B2B projects.

Understanding Flanged Plug Valves

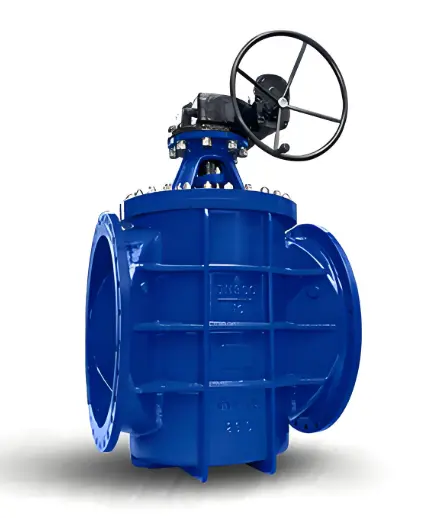

A flanged plug valve is a quarter-turn rotary valve that controls fluid flow through a cylindrical or tapered plug. The flanged ends allow secure bolted connections to pipelines, in compliance with international standards such as ANSI, DIN, or JIS. The flanged design enhances mechanical stability, making it ideal for medium to large-diameter pipelines under high-pressure or high-temperature conditions.

● Valve Body (Flanged Ends) – Provides a strong and reliable pipeline connection
● Plug (Tapered or Cylindrical) – Rotates 90 degrees to open or close the flow
● Seat or Liner – Ensures tight sealing while reducing friction
● Stem and Actuation Mechanism – Can be manual, gear-operated, or automated

The compact design allows installation in limited spaces while facilitating maintenance and component replacement, meeting the high reliability and long-term stability requirements of B2B industrial projects.

How Flanged Plug Valves Operate

The operation of a flanged plug valve is simple yet highly effective:

● In the open position, the internal port of the plug aligns with the pipeline, allowing free fluid flow
● In the closed position, a 90-degree rotation of the plug completely blocks the flow

Key operational advantages include:

● Fast shut-off – Only a quarter-turn is needed to isolate flow
● Bubble-tight sealing – Lubricated or sleeved designs prevent leakage
● Low pressure drop – Minimal impact on system pressure when fully open
● Bidirectional flow capability – Most designs support flow in either direction

This straightforward mechanism reduces mechanical complexity and increases long-term reliability in demanding industrial conditions.

Types of Flanged Plug Valves

Depending on industrial requirements and fluid characteristics, flanged plug valves are available in several types:

● Lubricated Plug Valve – Uses injected sealant to reduce friction and improve sealing. Suitable for high-pressure, high-temperature, and heavy-duty applications, commonly used in oil and gas pipelines.
● Non-Lubricated (Sleeved) Plug Valve – Features PTFE or elastomer sleeves, requiring low maintenance and providing excellent chemical resistance, ideal for chemical and wastewater treatment plants.
● Eccentric Plug Valve – Offset plug design reduces seat wear, enhancing durability in slurry, sludge, and wastewater applications.

Selecting the right type ensures optimal performance under specific operating conditions while minimizing maintenance frequency and operating costs.

Key Industrial Applications

Flanged plug valves are widely used in industries that require reliable isolation and flow control:

● Oil & Gas – Crude oil transfer, refining pipelines, and processing facilities
● Chemical & Petrochemical – Handling corrosive or hazardous fluids
● Water & Wastewater Treatment – Sludge, slurry, and utility lines
● Power Generation – Cooling water circuits, auxiliary systems, and process pipelines
● Mining & Pulp Industries – Flow control for abrasive and slurry media

Their robust construction and excellent sealing performance ensure stable operation under harsh conditions, maintaining system safety and continuity.

Advantages for B2B Projects

For engineers and procurement teams managing large-scale industrial projects, flanged plug valves offer tangible benefits:

● Durability – Strong valve body withstands high pressure, high temperature, and mechanical stress
● Secure Installation – Flanged connections ensure leak-proof integration with pipelines
● Low Maintenance – Simple internal structure reduces downtime and service costs
● Material Versatility – Available in carbon steel, stainless steel, alloy steel, and specialty materials to meet diverse operating conditions
● Automation Ready – Compatible with pneumatic or electric actuators for remote or automated operation

These advantages help B2B buyers improve system reliability while optimizing total cost of ownership (TCO).

Installation and Maintenance Tips

To ensure long-term performance and lifespan:

● Confirm proper flange bolt torque according to specifications
● Verify pressure rating and gasket material compatibility
● Operate valves periodically to prevent sticking during idle periods
● Inspect seat and sealing surfaces for wear or corrosion during scheduled maintenance
● Maintain appropriate sealant or lubricant levels in lubricated valves

A preventive maintenance strategy significantly extends valve life and reduces the risk of unexpected downtime.

Conclusion

Flanged plug valves offer fast shut-off, durable construction, and flexible installation options, making them an essential component in industrial pipeline systems. In oil and gas, chemical processing, water treatment, and other industrial sectors, selecting the right flanged plug valve ensures efficient, safe, and long-term stable operation, while minimizing maintenance and operating costs. For B2B buyers, flanged plug valves provide a reliable solution that enhances both operational efficiency and project ROI.

FAQ

1. What is the primary advantage of a flanged plug valve?
Its quarter-turn operation and tight sealing allow fast and reliable shut-off with minimal pressure loss.

2. How do lubricated and non-lubricated plug valves differ?
Lubricated valves use injected sealant to reduce friction, while non-lubricated valves rely on PTFE or elastomer sleeves for low-maintenance operation.

3. Are flanged plug valves suitable for corrosive fluids?
Yes. When made from stainless steel or lined with PTFE, they can safely handle aggressive chemicals.

4. Can flanged plug valves be automated?
Yes. They can be fitted with pneumatic or electric actuators for remote or automated operation.
